Fits to: e90, e91, e92, e93, e81, e82, e87, e88
!!! NOTE !!! NEW E39 FAG BEARINGS + HUBS are NOT Included!!! They costs + $200 !!! NOTE !!!
Having a good coilover setup will get you half way if you aim for maximum performance , minimizing body roll with lower ride height.
– With superior kinematics behaviour in mind, we managed to get maximum drop from our knuckles which gives you the ability to have a well stanced drift car with outstanding performance qualities.
Main benefits obtained using our kit :
– Cambergain;
– Anti-squat ( adjustment available at top forward control arm);
– Bumpsteer;
– Strength and stiffness;
– Easy and fast Camber / Toe adjustment;
Also :
– Bolt-on hub/bearing for easy replacement (BMW e39 type);
– True coilover version available;
– Clearance for CV joints bigger than stock (knuckle CV pass diammeter 107mm);
– Two brake calipers version available;
– Track width is defined by the original halfshaft lengths;

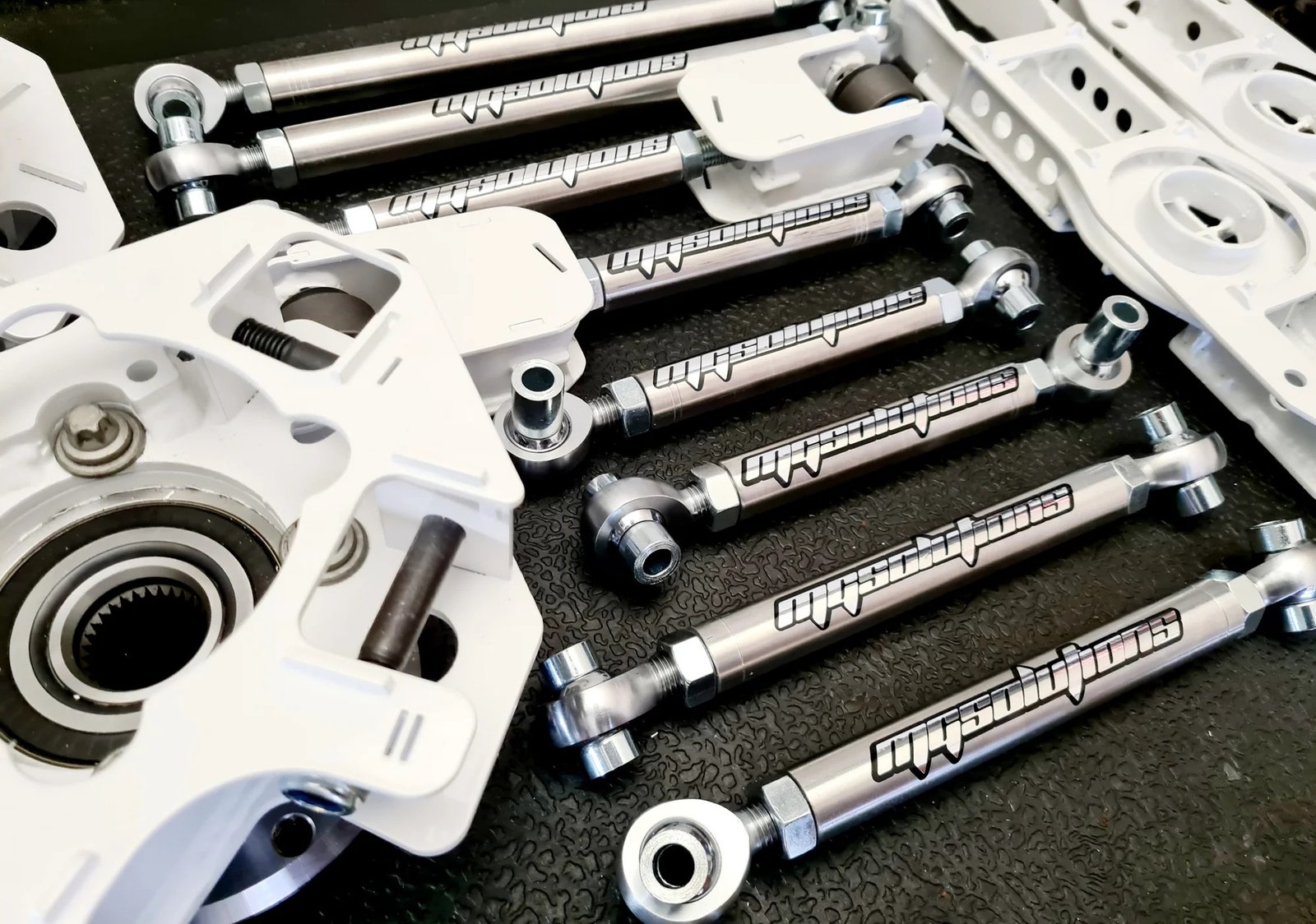

Kit includes:
– Drop knuckles with mounting hardware;
– Two hubs/bearings (optional);
– All suspension control arms/links;
NOTE :
– Minimum rim size 18”
– Subframe bushings are NOT included in this kit;
– Adapters will be needed for M3 or bigger brakes setup;
For racе use only !
!!! NOTE !!! NEW E39 FAG BEARINGS + HUBS are NOT Included!!! They costs + $200 !!! NOTE !!!
– FOR MOTORSPORT USE ONLY!
* Installation should only be performed by a qualified car mechanic!
